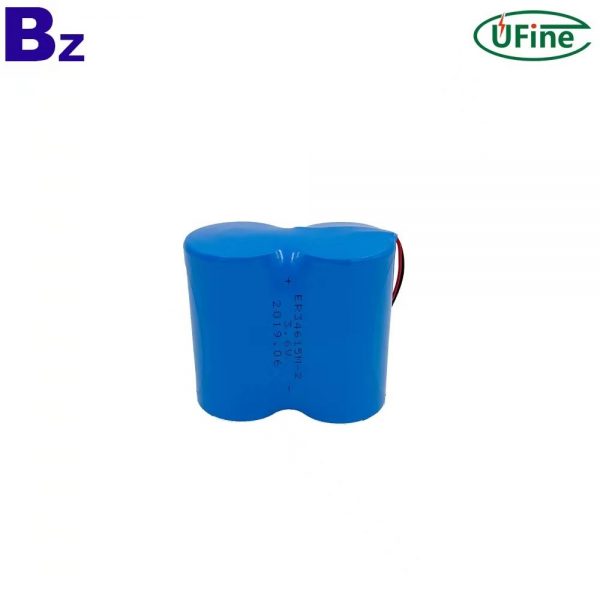

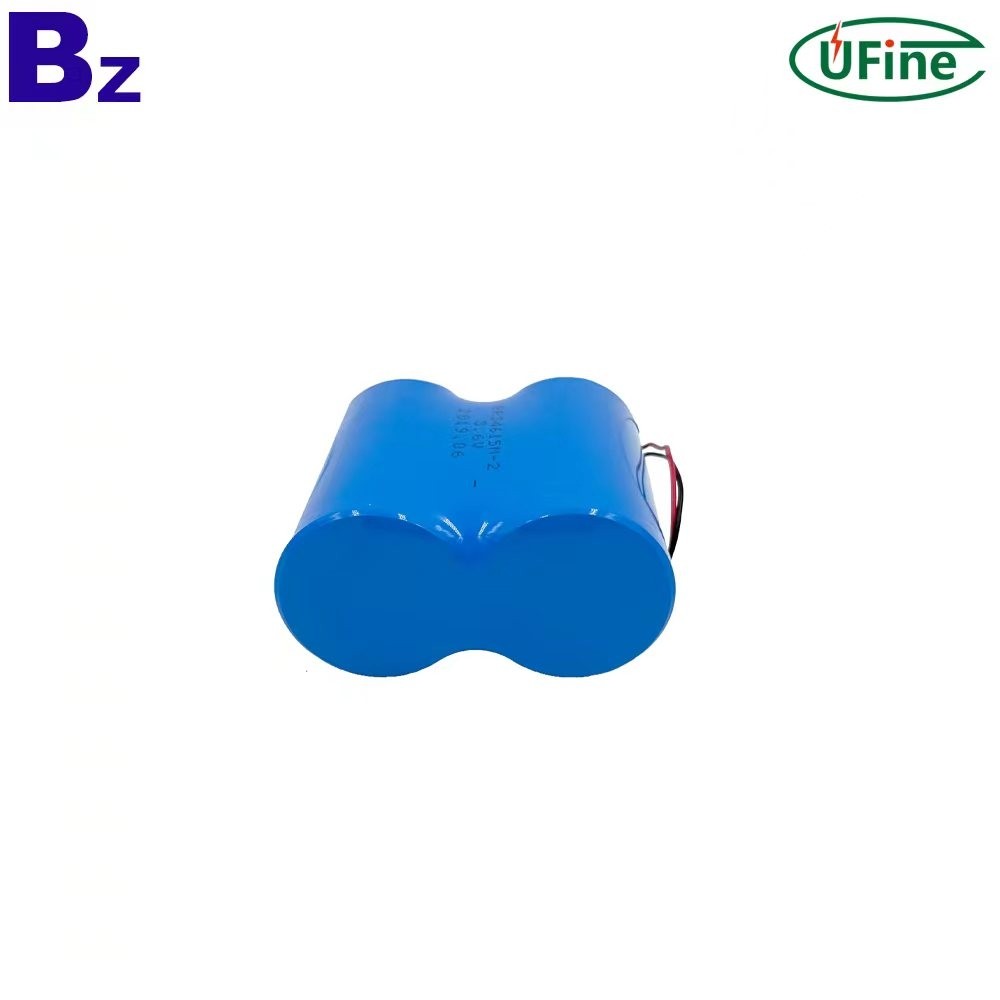

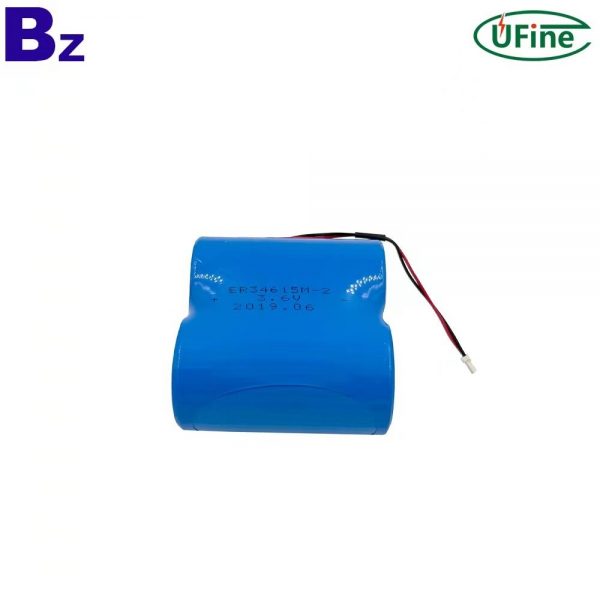

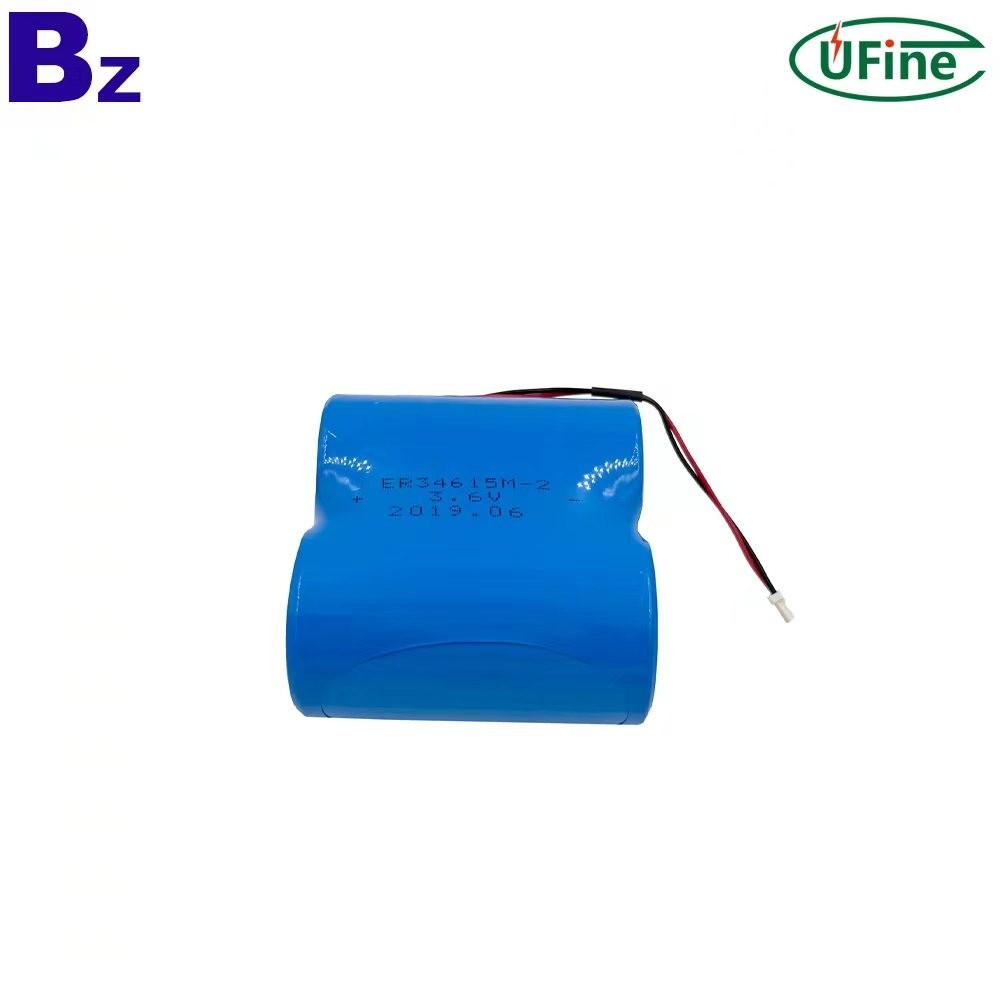

Factory Supply Disposable Water Meter Battery ER34615 3.6V 29000mAh Cylindrical Battery Pack

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

29000mAh

Standard discharge(0.2C C₅A) after Standard charge

Minimum

29000mAh

2

Nominal Voltage

3.6V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

–

5

Internal Impedance

≤60mΩ

–

–

6

Standard charge

–

–

–

–

7

Standard discharge

–

–

8

Fast charge

–

–

–

–

9

Fast discharge

–

–

10

Maximum Continuous Charge Current

–

11

Maximum Continuous Discharge Current

460mA

12

Operation Temperature Range

–

–

–

Discharge: -20~60℃

13

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max61mm

Width: max68mm
Thickness: max34mm

Initial  Dimension
