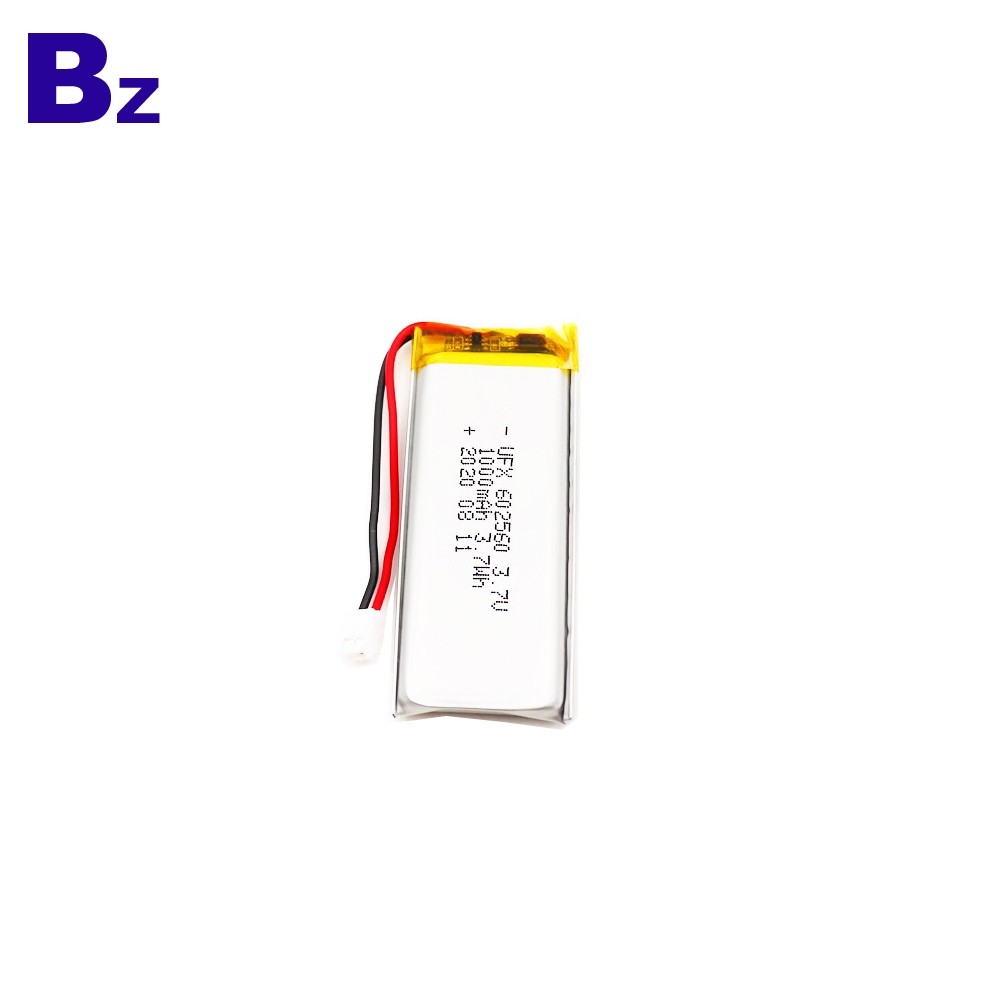

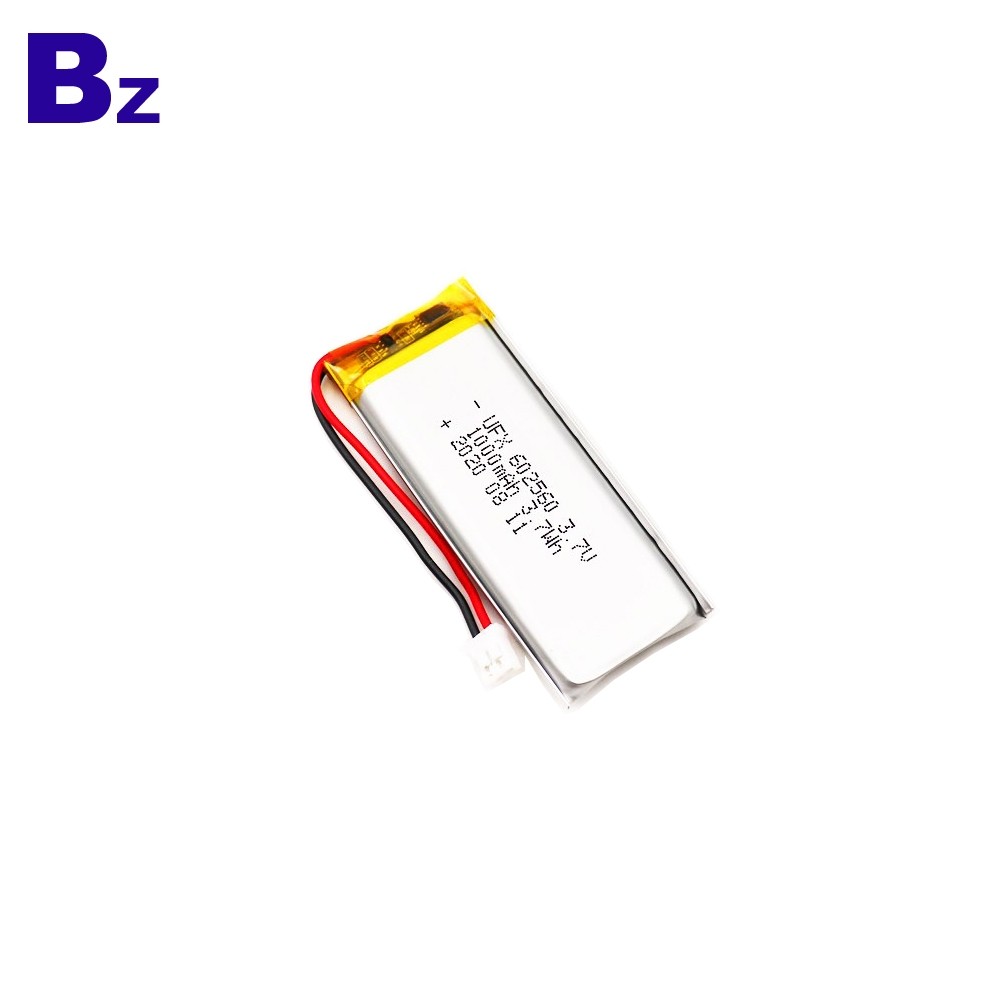

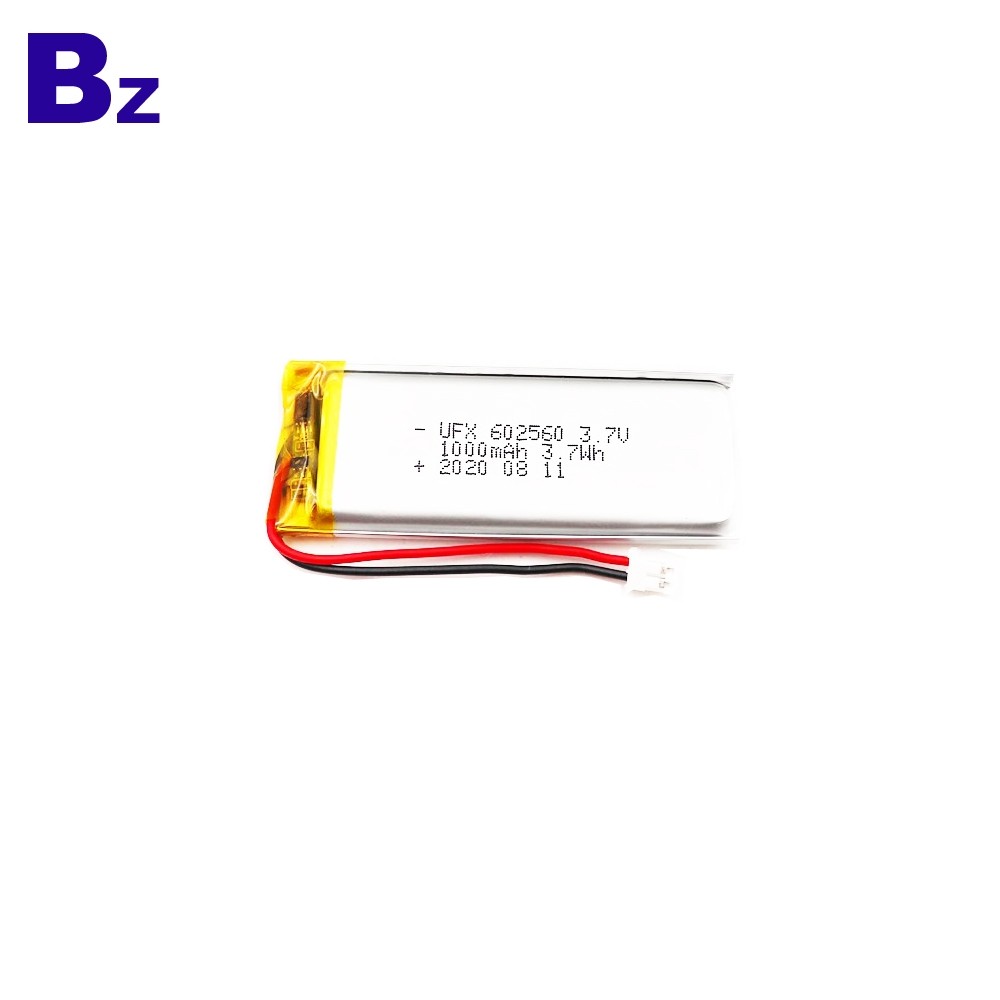

China Good Quality Electronic Mosquito Lamp Lipo Battery UFX 602560 1000mAh 3.7V Lithium Polymer Battery

$1.45

Place of Origin: Guangdong, China (Mainland)
Brand Name: UFX
Model Number: 602560
Type: Lithium-ion
Nominal Voltage: 3.7V
Size: 9.5*40*60mm
Nominal Capacity: 1000mAh
Product name: UFX 602560 1000mAh
Warranty: 1 Year
Weight: 19g
Cycle life: 500 Times
Capacity: 1000mAh
Voltage: 3.7V
Application: Electronic Mosquito Lamp Battery
Certificate: UN38.3/CE/MSDS/ROHS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1030mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V

5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A

end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A

end voltage 3.0V

10

Maximum Continuous Charge Current

1 C5A

11

Maximum Continuous Discharge Current

1 C5A

12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~60℃

13

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max62mm

Width: max25mm
Thickness: max6mm

Initial  Dimension
